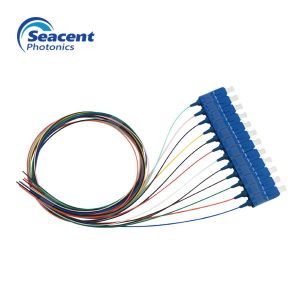

FTTB FTTH Optical Pigtail Multimode
Description:
Fiber Optic Pigtails are essential when terminating cables within the splice enclosures. Purchasing pre-polished assemblies reduces the risk of poor connector termination.
Apart from the standard versions, we can also make customized pigtails that meet your needs. From industry-standard 62.5/125µm multimode over 9/125 µm Single-mode right the way up to state-of-the-art OM3 50/125 µm cable assemblies, we can supply them all.
Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets ISO9001 and ROHS requirements. All of pigtails are factory inspected and tested, with available interferometer data upon request.
Ordering information:
| Connector type |
Casing color |
Fiber type |
Cable diameter |
Fiber length |
Cable type |
Casing material |
|
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/UPC
5=LC/APC
6=LC/UPC
7=ST
8=Customized
|
1=yellow
2=Orange
3=Aqua blue
S=Customized
|
1=SM9/125 G652D
2=SM9/125 G657A
3=MM50/125 OM3
4=MM62.5/125 OM1
S=Customized
|
1=0.9mm
2=2.0mm
3=3.0mm
|
0=0.5m
1=1.0m
2=1.5m
3=2.0m
S=Customized
|
1=Single core
2=Double core
3=waterproof
4=Branch
5=With fiber
6=Bundle
|
1=PVC
2=LSZH
3=OF
|
Technical parameter:
| |
FC,SC,LC
|
ST,MU
|
MTRJ
|
| |
SM
|
MM
|
SM
|
MM
|
SM
|
MM
|
| |
UPC
|
APC
|
UPC
|
APC
|
UPC
|
APC
|
UPC
|
APC
|
UPC
|
APC
|
UPC
|
APC
|
|
Working wavelength(nm)
|
1310,1550
|
850,1300
|
1310,1550
|
850,1300
|
1310,1550
|
850,1300
|
|
Fiber type
|
G657A1 or customed
|
|
Insertion loss(dB)
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
|
Return loss(dB)
|
≥55
|
≥60
|
≥35
|
≥35
|
≥50
|
≥50
|
≥35
|
≥35
|
≥50
|
≥50
|
≥35
|
≥35
|
|
Repeatability(dB)
|
≤0.1
|
|
Interchangeability(dB)
|
≤0.2
|
|
Number of plugs(frequency)
|
≥1000
|
|
Tensile strength (N)
|
≥70
|
|
Durability (dB)
|
≤0.2
|
|
Working temperature (°C)
|
-40℃- 85℃
|
|
Storage temperature(°C)
|
-40℃- 85℃
|
Ferrule technical parameters:
| description |
Single mode |
Multi mode |
| length |
(10.50±0.05)nm |
(10.50±0.01)nm |
| Outer diameter |
(2.4990±0.005)nm |
(2.4990±0.001)nm |
| inside diameter |
(0.125±0.001)nm |
(0.126±0.129)nm |
| Concentricity |
≤1.0 |
≤4.0 |
Features:
- Low insertion loss
- High return loss
- High stability and reliability
- Certified by Telcordia GR.1209 and GR.1221
- Meet ROHS standards
Appliaction:
- Fiber to the home
- Passive optical network
- Optical transmission system
- Optical fiber sensing system
- Test Equipment ; PON-FTTX network
